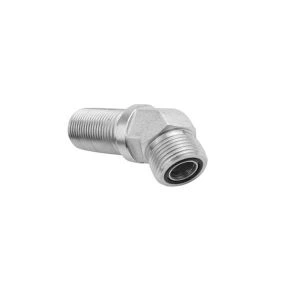

एनपीटीएफ पाइप कोहनी फिटिंग के लिए 45 डिग्री जेआईसी

2503-02-02

1/8

5/16-24

1/8-27

0.062

0.188

0.69

0.52

0.438

2503-03-02

3/16

3/8-24

1/8-27

0.125

0.188

0.69

0.52

0.438

2503-04-02

1/4

7/16-20

1/8-27

0.172

0.188

0.72

0.64

0.438

2503-04-04

1/4

7/16-20

1/4-18

0.172

0.281

0.82

0.86

0.562

2503-04-06

1/4

7/16-20

3/8-18

0.172

0.406

0.85

0.95

0.750

2503-04-08

1/4

7/16-20

1/2-14

0.172

0.531

0.87

1.17

0.875

2503-05-02

5/16

1/2-20

1/8-27

0.234

0.188

0.77

0.64

0.562

2503-05-04

5/16

1/2-20

1/4-18

0.234

0.281

0.82

0.86

0.562

2503-05-06

5/16

1/2-20

3/8-18

0.234

0.406

0.85

0.95

0.750

2503-06-02

3/8

9/16-18

1/8-27

0.297

0.188

0.83

0.67

0.562

2503-06-04

3/8

9/16-18

1/4-18

0.297

0.281

0.83

0.86

0.562

2503-06-06

3/8

9/16-18

3/8-18

0.297

0.406

0.87

0.95

0.750

2503-06-08

3/8

9/16-18

1/2-14

0.297

0.531

0.88

1.17

0.875

2503-06-12

3/8

9/16-18

3/4-14

0.297

0.719

0.93

1.20

1.062

2503-08-04

1/2

3/4-16

1/4-18

0.391

0.281

0.98

0.95

0.750

2503-08-06

1/2

3/4-16

3/8-18

0.391

0.406

0.98

0.95

0.750

2503-08-08

1/2

3/4-16

1/2-14

0.391

0.531

0.99

1.17

0.875

2503-08-12

1/2

3/4-16

3/4-14

0.391

0.719

1.04

1.20

1.062

2503-10-04

5/8

7/8-14

1/4-18

0.484

0.281

1.11

0.98

0.875

2503-10-06

5/8

7/8-14

3/8-18

0.484

0.406

1.11

0.98

0.875

2503-10-08

5/8

7/8-14

1/2-14

0.484

0.531

1.11

1.17

0.875

2503-10-12

5/8

7/8-14

3/4-14

0.484

0.719

1.16

1.20

1.062

2503-12-08

3/4

1-1/16-12

1/2-14

0.609

0.531

1.28

1.20

1.062

2503-12-12

3/4

1-1/16-12

3/4-14

0.609

0.719

1.28

1.20

1.062

2503-12-16

3/4

1-1/16-12

1-11-1/2

0.609

0.938

1.42

1.48

1.312

2503-14-12

7/8

1-3/16-12

3/4-14

0.719

0.719

1.45

1.30

1.312

2503-16-08

1

1-5/16-12

1/2-14

0.844

0.531

1.47

1.29

1.312

2503-16-12

1

1-5/16-12

3/4-14

0.844

0.719

1.47

1.29

1.312

2503-16-16

1

1-5/16-12

1-11-1/2

0.844

0.938

1.47

1.48

1.312

2503-16-20

1

1-5/16-12

1-1/4-11-1/2

0.844

1.250

1.54

1.67

1.625

2503-20-16

1-1/4

1-5/8-12

1-11-1/2

1.078

0.938

1.59

1.64

1.625

2503-20-20

1-1/4

1-5/8-12

1-1/4-11-1/2

1.078

1.250

1.59

1.67

1.625

2503-20-24

1-1/4

1-5/8-12

1-1/2-11-1/2

1.078

1.500

1.65

1.77

1.875

2503-24-20

1-1/2

1-7/8-12

1-1/4-11-1/2

1.312

1.250

1.78

1.74

1.875

2503-24-24

1-1/2

1-7/8-12

1-1/2-11-1/2

1.312

1.500

1.78

1.77

1.875

2503-32-32

2

2-1/2-12

2-11-1/2

1.781

1.938

2.22

2.11

2.500

2503-40-40

2-1/2

3-8

2 1/2-8

2.318

2.318

2.49

2.20

3.234
